Firstly, I will open a web page design into which I will add some shapes. Move your mouse over the ‘Designs Gallery’ label on the right side of the
window and click on the Website Themes to see the many designs and template layouts. Click on the Folder - Free Example (R) and then double click on
‘Header Page’ to open it as a new page. Note that (R) means that it will open in two tabs because this is a website pre-configured to respond
dynamically to the screen size of the viewer, so there are both desktop computer and mobile device variants. This is a great new feature in Xara Web
Designer 10 Premium

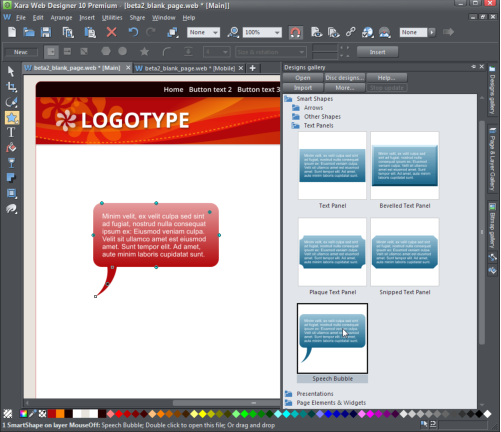

Go back to the ‘Designs Gallery’ and open the folder SmartShapes then Text Panels and drag the Speech Bubble onto the page. At the prompt that asks
if we wish to match the color & text style of the document, select Match.
You can also access the SmartShapes in the online Content Catalog - go to Insert > From Content Catalog and double click on the shape or select
‘import’ to bring it into your document.
Inserting a SmartShape from the Designs Gallery
Upon opening a SmartShape, you’ll see that the Quickshape tool is now active. If you look on the Quickshape infobar you’ll see an Insert button that
gives you direct access to add the more commonly used SmartShapes of Arrows, Text Panels and Speech Bubbles as well the regular Quickshapes such as
rectangles and ellipses.
With the Speech Bubble, the edit handles allow you to change the dimensions of the bubble, add curvature, control the text area, and also tweak the
size and orientation of the bubble's arrow. You can edit the text using the text tool and change the colors using the color editor.

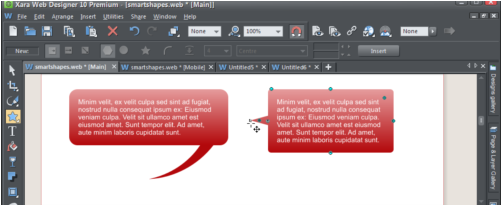

We’ll start by changing the position, size and orientation of the bubble’s arrow. You’ll notice there are three edit points on the arrow. Click & drag on
the bottom edit point of the arrow to change its length, the mid point will change the curvature to left or right, or make it straight, and the top edit
point will change its position on the speech shape - note that the arrow can be moved to anywhere around the edge of the speech shape.
Speech Bubbles showing changes of arrow shape and orientation
The side, top and bottom handles can be dragged to change the width or height of the Speech Bubble. Drag the top left handle to change the curvature
of the Speech Bubble – dragging it outward will create a rectangle with straight sides and dragging it inward will increase the curvature of the four
‘corners’. The edit handle at the top right of the text will change the margin between the text and the outer edge of the Speech Bubble. In the
rounded bubble below, I have moved it inward to increase the margin.
Straight edge and curved versions of the Speech Bubble

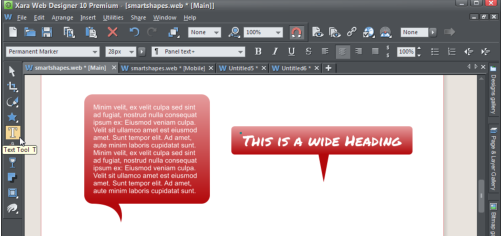

Now select the Text Tool and increase the amount of text – see how the Speech Bubble automatically enlarges to accommodate the new text. You can
use any of the Text functions and in this long one I have changed the font and made the heading bold.
Speech Bubbles with text changes

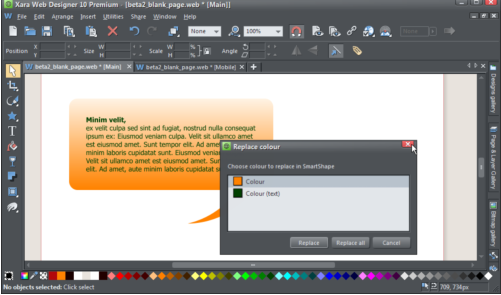

Now I shall change the colour of both the background and the text. Using either the Selector Tool to select the object, or the Text Tool, simply drag a
colour from the bottom colour line and I am asked if I want to change the Theme colour or the Text colour. I shall make the Theme colour lighter and
then drag a darker colour in for my text.
Changing the Bubble and Text colours

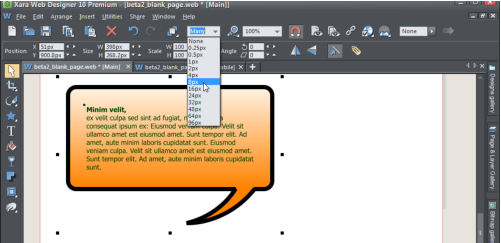

With the object selected I shall now add an outline around the Speech Bubble using the ‘Set line width’ function – in the example below I have
increased the line width to 8 pixels wide. To change the colour of the ‘border’ simply drag in a colour and then select to change the outline colour.
Increasing the width of the outline

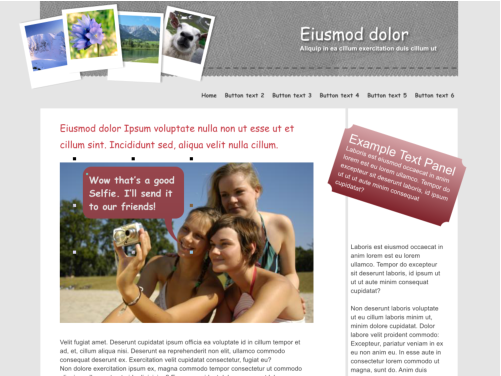

As you have seen, it is really easy to adapt a SmartShape to your own requirements for your website or document. Here’s an example web page with a
speech bubble and text panel.
Example of a speech bubble and text panel on a web page.
Xara Web Designer can do a lot more – it’s probably the most flexible powerful web design program, that doesn’t require any knowledge of HTML. If
you’re a creative designer your options are unlimited with Web Designer. If you’re less creative, or do not have the time, then just customize the
templates and graphics as we’ve done here. I hope you enjoy using Xara Web Designer.
